Print sheet

Superiore

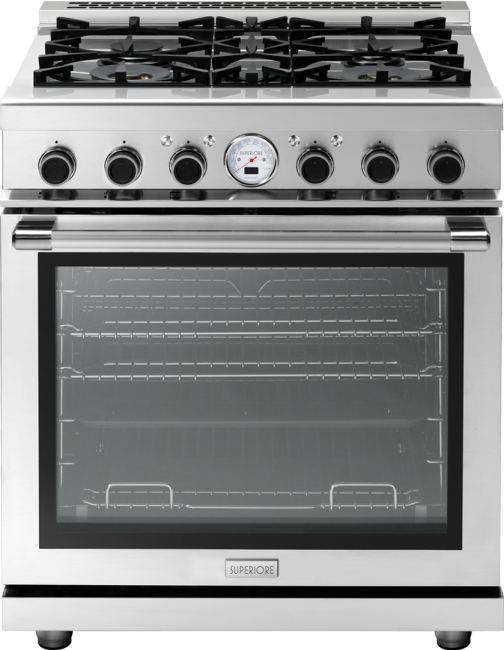

Range NEXT 30” Panorama - Stainless steel

RN301SPS_S_ - 042050002

Range with a contemporary design and an unparalleled level of cooking flexibility. The oven can be electric multi-mode self-clean. On the worktop, the range always features a 4 brass burner layout.


Featured Product


Color Style Decò accents Fuel
Stainless steel NEXT Line Steel All Gas
Installation Version Levels Width
Free Standing Duct-out 1 30
Depth
24

Worktop

Design Gas burners Gas brass burners ↳ Power burner with simmer (n° 1)
Squared worktop with bull nose 4 4 750 -- 18,000 Btu/h (min -- max)
↳ Power burner (n° 1) ↳ Large burner (n° 1) ↳ Medium burner (n° 1) Total gas power
4,750 -- 18,000 Btu/h (min -- max) 2,750 -- 18,000 Btu/h (min -- max) 2,050 -- 6,500 Btu/h (min -- max) 53,500 Btu/h
Grates Ignition Gas safety Wok ring
Cast Iron One Hand Thermocouples Standard
Simmer ring Interface Electric griddle Type Backguard
Standard Knob Cast Iron Optional
Island trim
Standard

Oven cavity

Oven(s) Main oven type oven functions Oven convection fans
1 Electric Multifunction
2
overall cavity volume Main interior dimension (WxDxH) Enamel Enamel color
5.7 cu.ft 24" 13/64 x 19" 57/64 x 20" 31/64 Easy to Clean Light Grey
Oven control device oven power Maximum cooking temperature Cooling fan
Analog Thermometer 5550 W 500 °F Standard
Door type Door design Glasses oven lights
Fully Flush Panorama 3 2

Equipment

telescopic glide shelves Main Oven wire shelves enamelled trays trivet
1 set 2 1 1

Below

Storage compartment Feet Stainless steel toekick
Flap Opening Stainless Steel Adjustable Optional

Connections and Warranty

Gas adjustment: natural gas Gas adjustment: LPG Voltage -- Frequency Certification
Standard Standard accessory- Model RN301GPS_SL 120 | 240 - 60 V -- Hz CSA, Star-K
Warranty
2 years
