Superiore

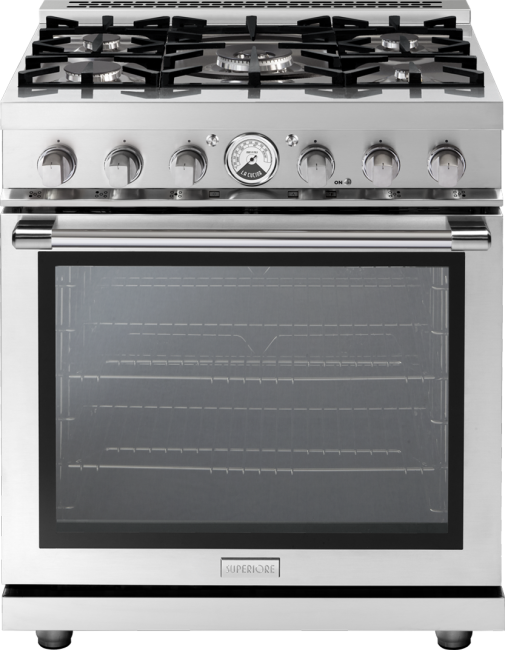

Range LA CUCINA 30” Panorama - Stainless steel

RL301GPS_S_ - 040050070

Range with transitional design and a great level of gas fexibility thanks to its 5 burner configuration, that is the ideal worktop for its large gas convection oven with broiler.


Featured Product


Color Style Decò accents Fuel
Stainless steel LA CUCINA Line Steel All Gas
Installation Levels Width Depth
Free Standing 1 30 24

Worktop

Design Gas burners ↳ Power burner with simmer (n° 1) ↳ Large burner (n° 1)
Squared worktop with bull nose 5 750 -- 18,000 Btu/h (min -- max) 2,750 -- 11,000 Btu/h (min -- max)
↳ Medium burner (n° 2) Total gas power Grates Ignition
2,050 -- 6,500 Btu/h (min -- max) 45,600 Btu/h Cast Iron One Hand
Gas safety Wok ring Simmer ring Interface
Thermocouples Optional Optional Knob
Backguard Island trim
Optional Standard

Oven cavity

Oven(s) Main oven type oven functions Oven convection fans
1 Gas Convection Oven with Gas Grill
1
overall cavity volume Main interior dimension (WxDxH) Enamel Enamel color
5.7 cu.ft 24" 13/64 x 19" 57/64 x 20" 31/64 Easy to Clean Light Grey
Smooth oven interior Oven control device Maximum cooking temperature Cooling fan
Standard Analog Thermometer 500 °F Standard
Door type Door design Glasses oven lights
Fully Flush Panorama 3 2

Equipment

telescopic glide shelves Main Oven wire shelves enamelled trays trivet
opt 2 0 0

Below

Feet Stainless steel toekick
Stainless Steel Adjustable Optional

Connections and Warranty

Gas adjustment: natural gas Gas adjustment: LPG Voltage -- Frequency Certification
Standard Standard accessory- Model RL301GPS_SL 120 -- 60 V -- Hz CSA, Star-K
Warranty
2 years
